Home > Products > Printer > Receipt Printer

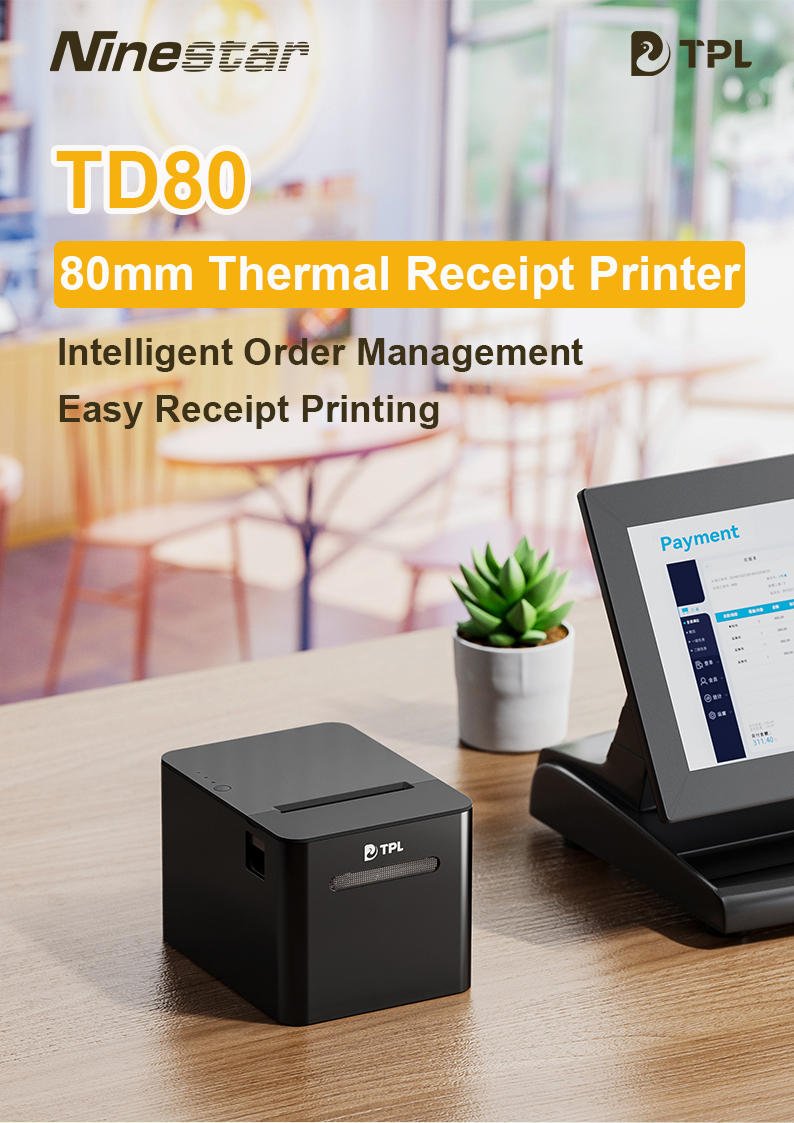

TD80

80mm Desktop Thermal Receipt Printer

· Extra-large paper compartment supports 58&80mm printing widths

· Optional sound and light alarm function, ideal for noisy environments

· IP54-rated waterproof and dustproof design, extending printer lifespan

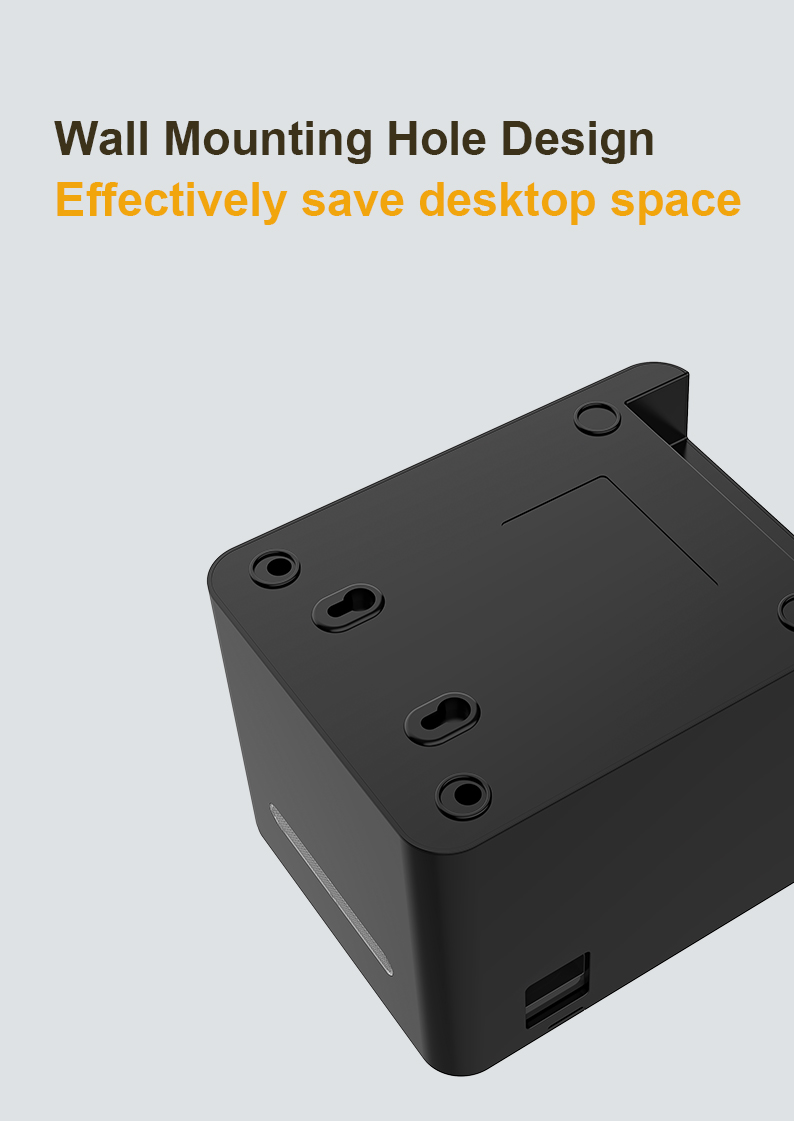

· Wall-mountable to save space

Overview
Product Specification
Download

Application

Features

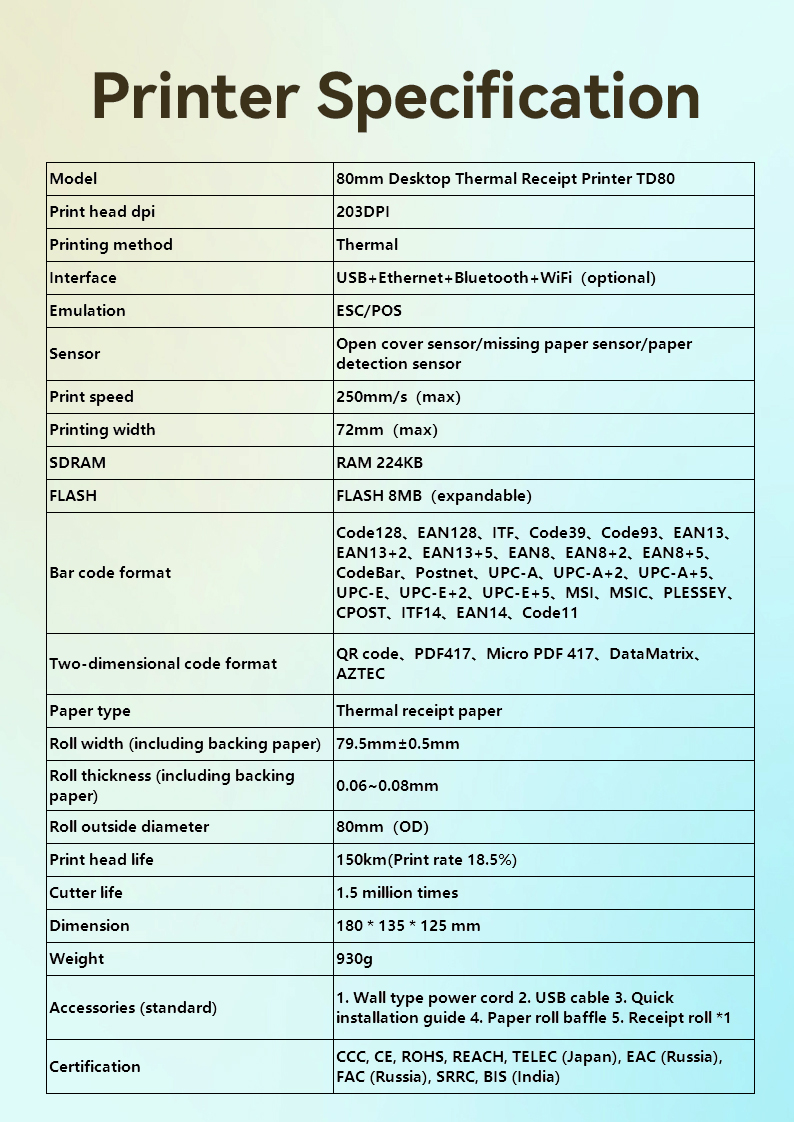

Model	80mm Desktop Thermal Receipt Printer TD80
Print head dpi	203DPI
Printing method	Thermal
Interface	USB+Ethernet+Bluetooth+WiFi（optional）
Emulation	ESC/POS
Sensor	Open cover sensor/missing paper sensor/paper detection sensor

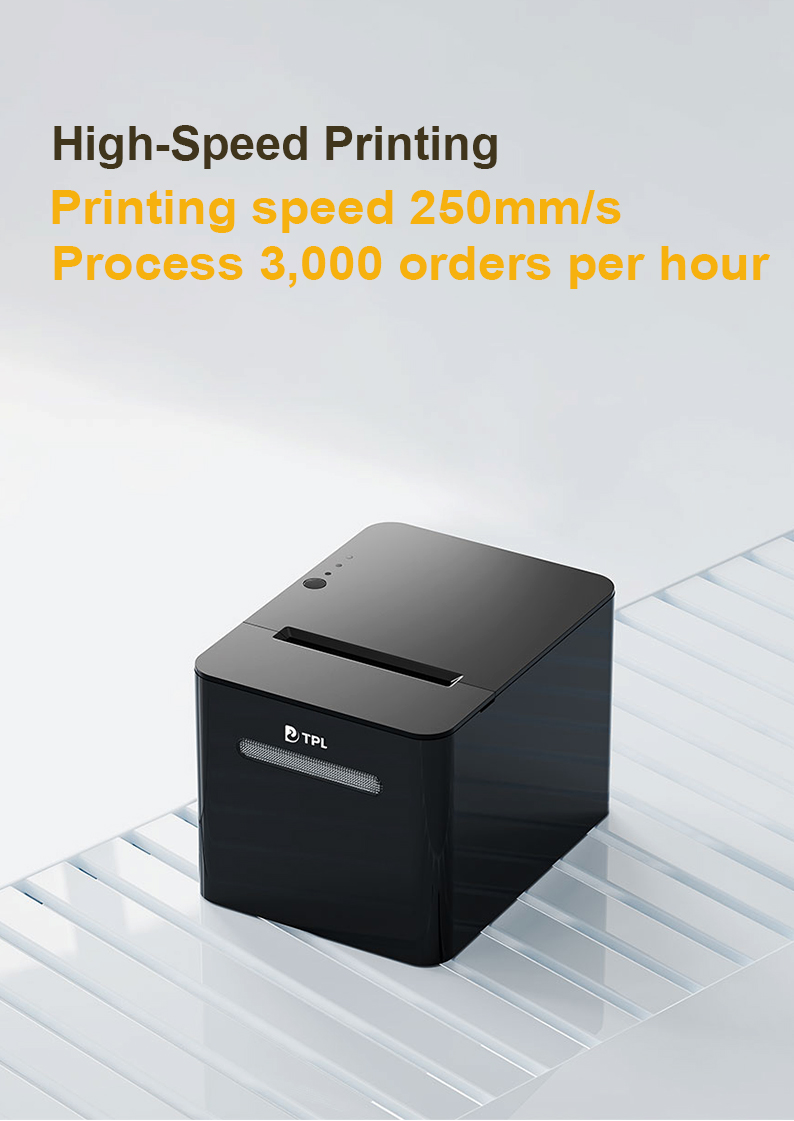

Print speed	250mm/s（max）
Printing width	72mm（max）
SDRAM	RAM 224KB
FLASH	FLASH 8MB（expandable）
Driver support system	Windows：Windows 7/10/11（32 bit/64 bit）
	MacOS：10.9/10.10/10.11/10.12/10.13/10.14/10.15/11.6/12.1/12.2/12.3/12.4/14.4/14.6
	Linux Ubuntu： 18.04/20.04/22.04/24.04
	Astra Linux Special Edition V1.6
APP support system	Android 6.0 and above
APP support system	iOS 11 and above
Bar code format	Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11
Two-dimensional code format	QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC
Character enlargement/rotation	1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing
Character	GB18030、BIG5、ASCII
Extended character	PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257 and other languages, 61 kinds in total
Character size	9x17dot, 12x24dot, 24x24dot
Paper type	Thermal receipt paper
Roll width (including backing paper)	79.5mm±0.5mm
Roll thickness (including backing paper)	0.06~0.08mm
Roll outside diameter	80mm（OD）
FEED	Feed sheet
Power	Input power supply: AC100 〜240V Output power: DC 24V~1.5A
Working environment	Operating temperature: 5~40°C Operating humidity: 25~85%
Storage environment	Storage temperature: -10~60℃ Storage humidity: 10~90%
Print head life	150km(Print rate 18.5%)

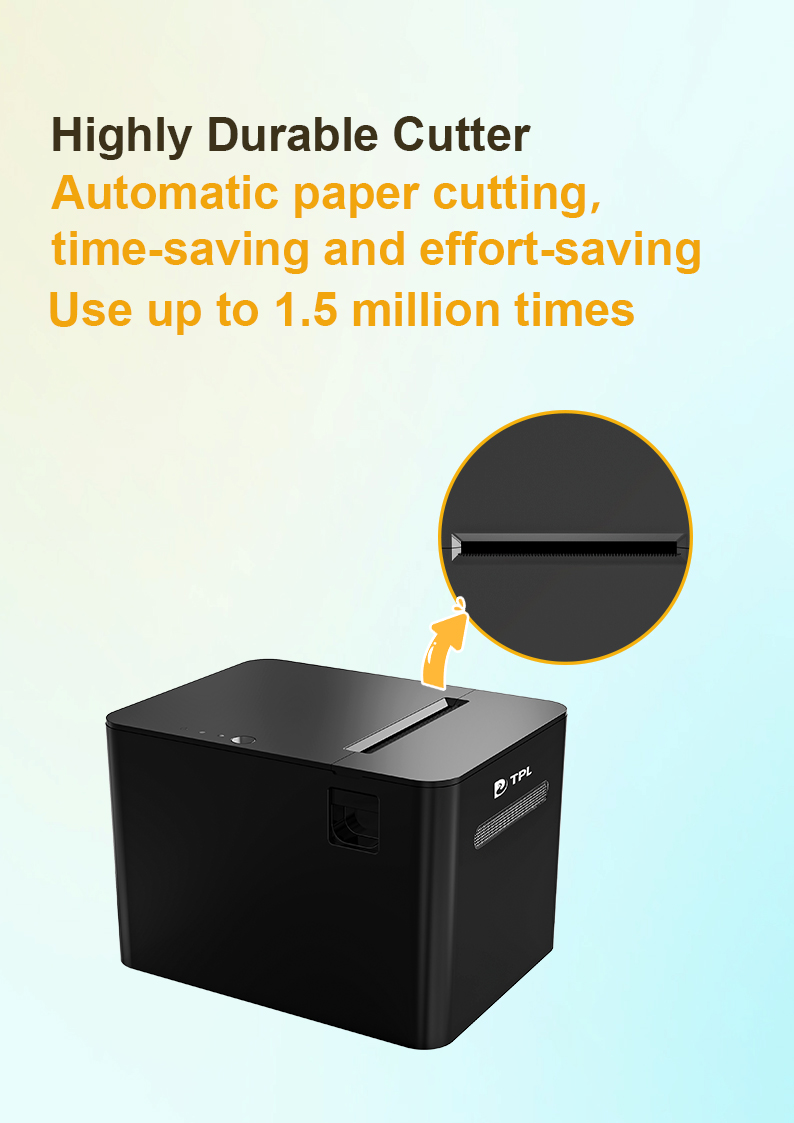

Cutter life	1.5 million times
Dimension	180 * 135 * 125 mm
Weight	930g
Accessories (standard)	1. Wall type power cord 2, USB cable 3. Quick installation Guide 4, paper roll baffle 5. Receipt roll *1
Certification	CCC, CE, ROHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC，BIS（India)

Product Structure
